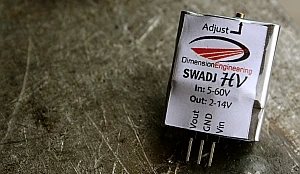

The SWADJHV is the a high-voltage edition of our popular
DE-SWADJ adjustable switching regulators. It is designed to accept an
input voltage ranging from 5-60V, allowing you to power a variety of
applications from extremely high-voltage sources. The SWADJHV is
pin-compatible with the common 78XX family of linear voltage
regulators, and has a small screw on top that allows you change the
output voltage as your project evolves. It has integrated decoupling
capacitors, so external capacitors are not generally necessary.
SWADJHV can deliver a maximum of 1 Amp.
The screw potentiometer on SWADJHV is worm-gear driven, so small
vibrations and movement will not cause the voltage to shift. Use of
glue to hold the screw in place is strongly discouraged and could
damage the device.
